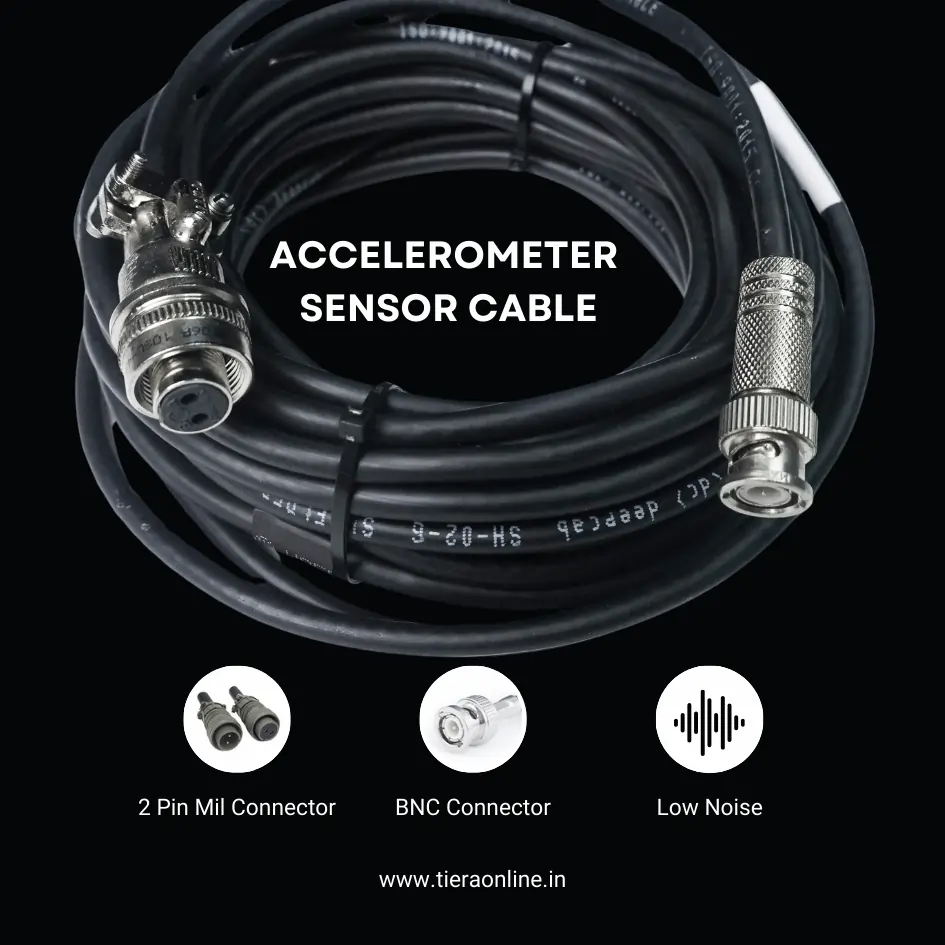

Accelerometer Sensor Cable
Original price was: ₹2,600.00.₹1,500.00Current price is: ₹1,500.00.
CA-102-5-D-B : Tinned Copper Braid 2 Core Twisted Shielded Cable – One side 2 Pin Circular MIL Connector other side BNC Connector
Size and packaging guidelines
Fermentum scelerisque hendrerit parturient nullam enim lobortis litora parturient dictumst.
Potenti a quisque tincidunt venenatis adipiscing parturient fermentum nisl tincidunt amentu.
Scelerisque conubia lobortis a condimentum ad eleifend dui integer maecenas habitant nostra.
| Specification | Chair | Armchair | Sofas |
| Height | 37" | 42" | 42" |
| Width | 26.5" | 32.5" | 142" |
| Depth | 19.5" | 22.5" | 24.5" |
| Assembly Required | No | No | Yes |
| Packaging Type | Box | Box | Box |
| Package Weight | 55 lbs. | 64 lbs. | 180 lbs. |
| Packaging Dimensions | 27" x 26" x 39" | 45" x 35" x 24" | 46" x 142" x 25" |
“TIERA vibration sensor cable” is a cable specifically designed to connect a vibration sensor to other equipment or systems. These cables are crucial components in vibration monitoring systems, which are used in various industries for predictive maintenance, structural health monitoring, and research purposes.
The cable typically consists of several components:
- Connector: One end of the cable will have a connector that interfaces with the vibration sensor. The type of connector can vary depending on the sensor’s make and model. Common connector types include MIL connectors, M12 connectors, and terminal blocks.
- Wiring: The cable contains conductive wires that transmit the electrical signals generated by the vibration sensor. These wires are usually shielded to protect the signal from interference.
- Insulation: The wires are insulated to prevent electrical shorts and ensure the integrity of the signal.
- Outer Jacket: The cable is encased in an outer jacket for protection against physical damage, moisture, and environmental factors.
| Specification | Description |
|---|---|
| Core | 2 core shielded cable |
| Jacket Material | Grey PVC |
| Application | Permanent monitoring |
| Conductor Quantity | 2 conductors |
| Cable Diameter | 5.6mm |
| Shielding Method | Tinned copper braiding with aluminum foil tape |
| Mutual Capacitance | 120nF/km |
| Temperature Range | -40°C to 80°C |

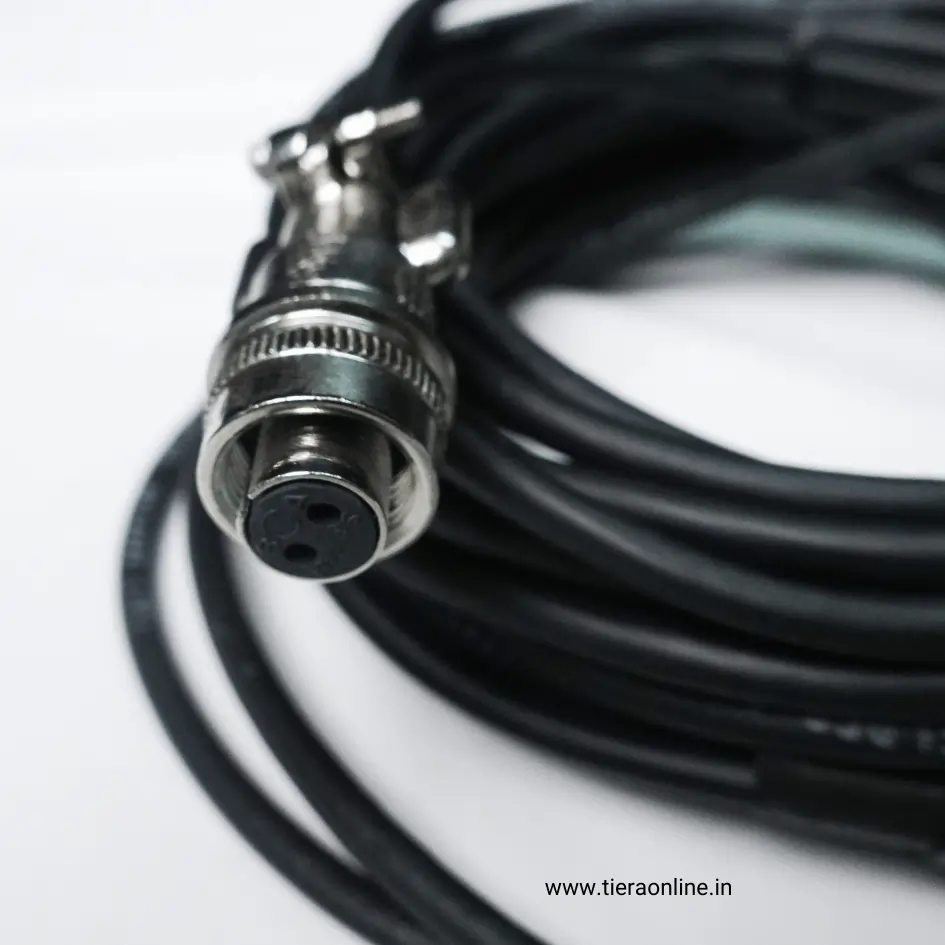

| MIL Connector | |
| – Application | Permanent mount |
| – Maximum Temperature | 200°C |
| – Connecting Type | 2 socket MIL |
| – Operating Temperature | -55°C to 125°C |
| – Durability | 100 cycles |
| – Coupling Style | Threaded |
| – Pinout | A: Signal, B: Common |
| BNC Connector | |
| – Model | BNC Connector |
| – Characteristic Impedance | 50Ω |
| – Body Material | Stainless steel |
| – Insulation Resistance | 50×10^6 ohm |
| – Shell Material | Brass |
| – Pin Contact | Gold plated |
| – Pin Out | Center Pin: Signal, Shell: Common |
CA-102-5-D-B
Vibration sensor cable
